Precision

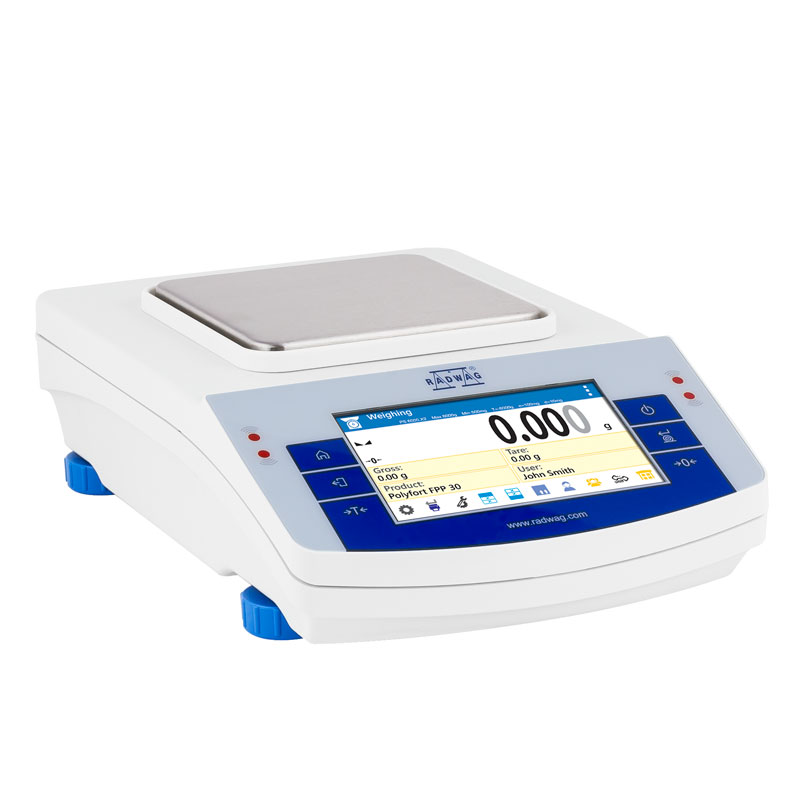

PS.X2 Precision Balances

Maximum Capacity 200g to 6000g
Minimum Load 20mg to 500mg
Readability 1mg to 100mg

Description

The PS.X2 series represents a new advanced level for precision balances.

The X2 series balances feature the latest generation capacitive display providing the maximum comfort of use, available right at your fingertips. Ease of operation, clear menu and practical arrangement of the display guarantee the best ergonomics for your everyday tasks. A wide array of available interfaces facilitate selection of the most optimal means for communication. The X2 series balances offer unlimited possibilities for cooperation with external devices, providing printing, copying, archiving and data transfer. Built-in IR sensors allow numerous operations (e.g. tarring, transmitting the result to a printer or selecting successive steps of a particular process, etc.) to be performed hands-free, by simply moving a hand across the sensor. The housing is made of plastic, and the pan is made of stainless steel.

The balances feature under-pan weighing option - the weighed load is suspended under the balance.

DATABASES IN X2 SERIES BALANCES

In new PS.X2 series balances the information system is based on 7 databases, which allows for several users to work with several products databases, and the registered weighing results can be subject to further analysis.

    The data is registered in 7 databases:
  • Users (up to 100 users)
  • Products (up to 5 000 products)
  • Weighments (up to 50 000 weighments)
  • Packaging (up to 100 packaging types)
  • Formulas (up to 100 formulas)
  • Clients (up to 100 clients)
  • ALIBI memory (up to 500 000 weighments)
    The X2 series features option of making reports of 2 different categories:
  • Reports on formulas (up to 200 reports)
  • Reports on density determination (up to 500 reports).
High capacity balances featuring new solution for fixing of the weighing pan

The new PS.X2 high capacity balances (6100, 8100 and 10100) feature centrally fixed weighing pan and additional sealing ring. This solution improves air-tightness and simplifies cleaning.To advance accuracy, the new balances have been equipped with metal anti-draft shield.Additional assets are both expanded capacity (even up to 10.1 kg) and smaller dispersion of weighings – better repeatability.

Personalization taken to the next level

The X2 is the only balance available on the market that provides a user with the option to design display using wide selection of widgets. Customised display of X2 series offers direct access to the results of your work and other important information directly from the home screen.

Weighing Data Management

USB interface facilitates quick transfer and copying of any results of your work (measurements, reports, databases) to other balances. Managing the databases of balances may be also carried out over network thanks to E2R system also offering the possibility of remote control. Network management of the weighing data increases effectivity, productivity and safety of the important data to the maximum.

ALIBI Memory

The X2 series balances feature ALIBI memory that is a warranty for safety and automatic recording of your measurements. Options such as data preview, copying and archiving are available to users, as well. The used ALIBI memory allows to record up to 500 000 weighment records.

Specification

PS 200/2000.X2 PS 210.X2 PS 360.X2 PS 600.X2 PS 750.X2 PS 750.X2
Max capacity 200 / 2000g 210g 360g 600g 750g 1000g
Minimal load 20mg 20mg 20mg 20mg 20mg 20mg
Readability 1 / 10mg 1mg 1mg 1mg 1mg 1mg
Tare range -2000g -210g -360g -600g -750g -1000g
Linearity ±2 / ±20mg ±2mg ±2mg ±3mg ±3mg ±3mg
Repeatability 1 / 10mg 1mg 1mg 1,5mg 1,5mg 1,5mg
Pan size 128×128mm
Working temperature +10 ÷ +40 °C
Stabilization time 2 s / 1,5s 2 ppm/°C in temperature +15 * +35 °C
Sensitivity drift Sensitivity drift
Minimum weight(USP) 1g
Minimum weight (U = 1%, k = 2) 0,1g
Interface 2 × RS 232, USB-A, USB-B, Ethernet, Wireless Connection
Power supply 12 ÷ 16 V DC / 350 mA
Adjustment/calibration internal (automatic)
Display 5'' colour capacitive touchscreen
Net weight / gross weight 3,5 / 5,5kg 3,5 / 5,5kg 3,5 / 5,5kg 3,5 / 5,5kg 3,5 / 5,5kg 3,5 / 5,5kg
Packaging size 470×380×336mm
PS 1200.X2 PS 2100.X2 PS 3500.X2 PS 4500.X2 PS 6000.X2 PS 6001.X2
Max capacity 1200g 2100g 3500g 4500g 6000g 6000g
Minimum load 500mg 500mg 500mg 500mg 500mg 500mg
Readability 10mg 10mg 10mg 10mg 10mg 100mg
Tare range -1200g -2100g -3500g -4500g -6000g -6000g
Repeatability * 10mg 10mg 10mg 10mg 15mg 100mg
Linearity ±20mg ±20mg ±20mg ±20mg ±30mg ±100mg
Pan size 195x195 mm
Working temperature +10   +40 °C
Stabilization time 1,5 s
Sensitivity drift 2 ppm/°C in temperature +10 ■+ +40 °C
Minimum weight (USP) 10g
Minimum weight (U = 1%, k = 2) 1g
Interface 2 × RS 232, USB-A, USB-B, Ethernet, Wireless Connection
Power supply 12 ÷ 16 V DC / 350 mA
Adjustment/calibration internal (automatic)
Display 5'' colour capacitive touchscreen
Net weight/Gross weight 3,6 / 5,1kg 3,6 / 5,1kg 3,6 / 5,1kg 3,6 / 5,1kg 3,6 / 5,1kg 4,8 / 6,3kg
Packaging size 470×380×336mm
* Repeatability is expressed as a standard deviation from 10 weighing cycles.
PS 6100.X2 PS 8100.X2 PS 10100.X2
Max capacity 6100g 8100g 10100g
Minimum load 500mg 500mg 500mg
Readability 10mg 10mg 10mg
Tare range -6100g -8100g -10100g
Repeatability * 10mg 12mg 15mg
Linearity ±30mg ±30mg ±30mg
Pan size 195x195 mm
Working temperature ** +10 + +40 °C
Stabilization time 1,5 s
Sensitivity drift 2 ppm/°C in temperature +10 + +40 °C
Minimum weight (USP) 10g
Minimum weight (U = 1%, k = 2) 1g
Interface 2 x RS 232, USB-A, USB-B, Ethernet, Wireless Connection
Power supply 12 + 16 V DC / 350mA
Adjustment/calibration internal (automatic)
Display 5'' colour capacitive touchscreen
Net weight/Gross weight 5,6 / 7,1kg 5,6 / 7,1kg 5,6 / 7,1kg
Packaging size 470x380x336mm

Drawings

Accessories

Antivibration table for laboratory balances Bar code scanner USB HID
Antivibration table SAL/STONE Power loop output AP2-1 (plastic housing)
Impact printer Epson Additional LCD display "WD-6"
Printer USB PCL Power adapter with battery and charger ZR-02
Density determination kit Mass standard
Rack for under hook weighing Draft shield (for balances featuring 128x128 weighing pan)
"Tare" or "Print" foot button USB A- USB B cable (balance - computer, balance - PLC printer)
PC keyboard USB Cable RS 232 (scale - computer) "P0108"
External USB memory (FAT files format) Cable RS 232 (scale, Epson printer) "P0151"
Bar code scanner "PW-WIN" computer software
"RAD-KEY" computer software
